Here, we introduce the DCW2700 wet wipe machine, which stands out from other, related machines due to its ability to allow material changeover while the machine is still running. At a speed of 2500-3500 pieces/minute, the towelette machine can produce packs that have 30-20 pieces of wet tissue each. This wet wipe machine is incredibly versatile, meaning that in addition to baby wipes, it can produce make-up towels, feminine wipes, and cleaning towelettes.

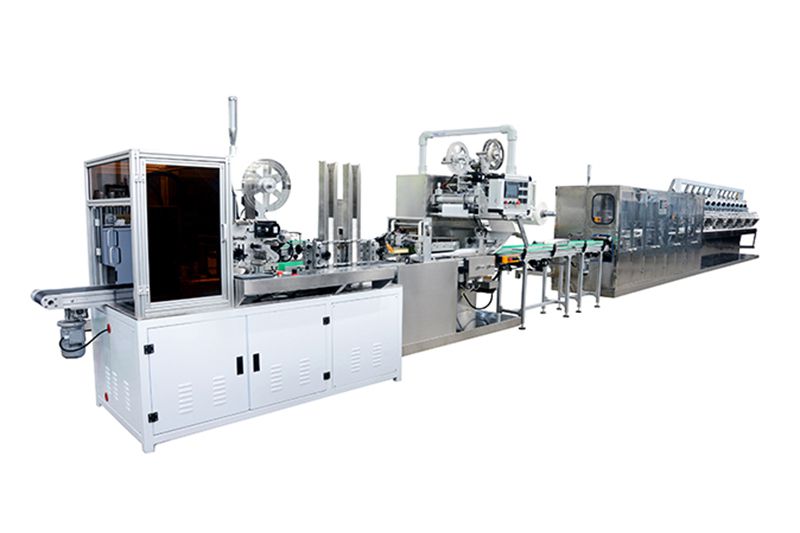

The DCW2700 wet tissue machine can work with the KGT340B packaging machine to form a fully automatic wet wipe production line, which can be operated by only 2 or 3 employees. With a high stability and efficiency, it is an ideal automatic baby wipe folding and packing machine for large scale wet tissue manufacturers.
Parameters of the Wet Wipe MachineName | |
Production speed | 2500-3500 pcs/min |
Slitting line | 10 or12 line |
Suitable material | Spunlace |
GSM | 40 - 80g/m2 |
Voltage | 380V 50HZ |
Power | 13KW |

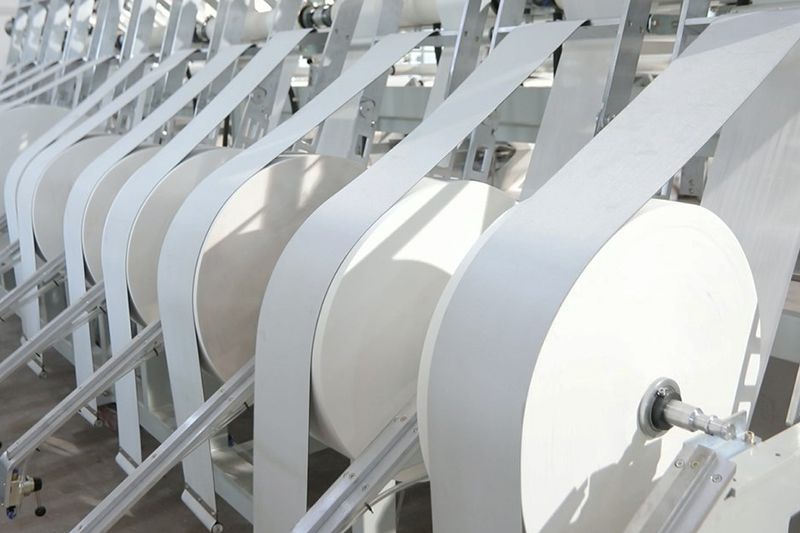

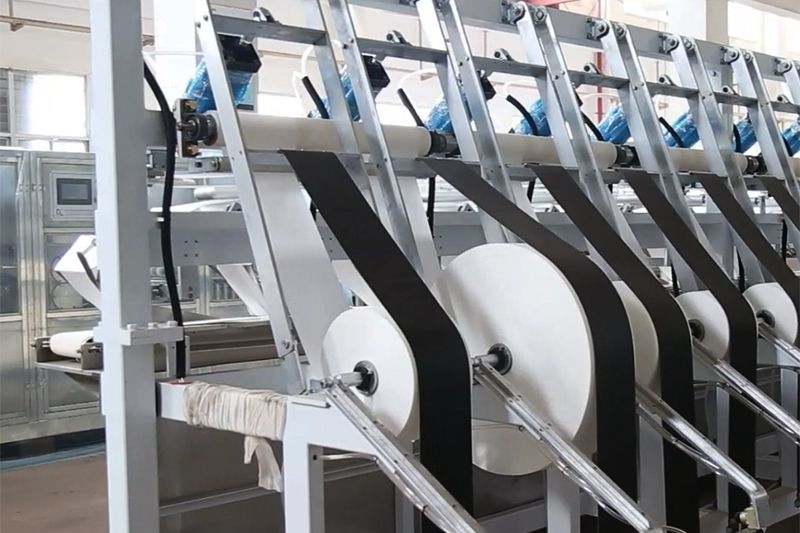

Width of raw material | 180-220mm |
Unfolded size (mm ) | (120-250) × (180-220) (L×W) |
Folded size (mm) | (120-250) × (90-110) (L×W) |
Folding manner | Drawable or non-drawable (adjustable) Z, W, C |
Counting mode | Counting automatically, automatic adjustable stacking system |
Moistening system | double tanks with agitators |

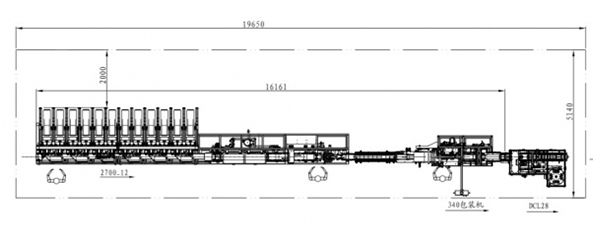

Installation space (m) | 10×2×2.4(L×W×H) |
Tank size (mm) | 900 × 900 × 1900 |
Weight | 9T |
Efficiency | ≥85% |
Waste rate | ≤2% |
Superior Quality
1. CE standard
2. 45 # channel steel structure
3. Anti-rust painting surface treatment
4. Mitsubishi, Omron electrical components
5. Stainless steel screws
6. Compact
7. Reasonable wiring
8. Elegant appearance
Features of the Wet Wipe Machine
1) Automatic counting, automatic stacking adjustment.
2) Moistening system with double tanks and agitators.

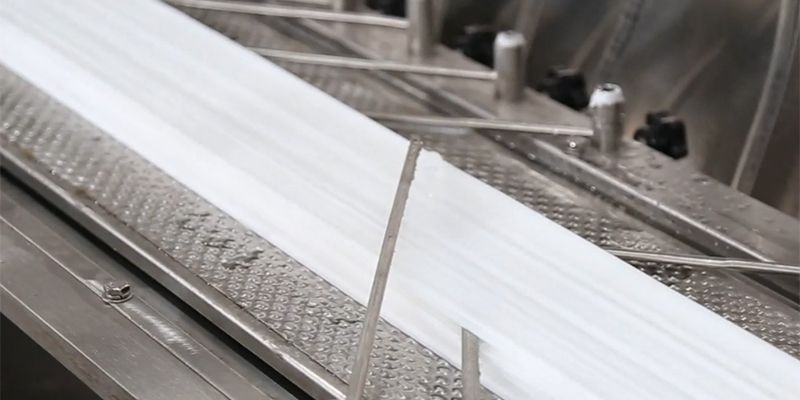

3) Spunlace cutting system: cutting length can be adjusted.
4) Semi-servo design, compact structure, easy operation and maintenance.
5) CE standard design, with security door and emergency stop.
6) CNC machined mechanical parts; Mitsubishi, Omron electrical components.
7) PLC control system and monitoring system.
8) Durable alloy cutter.
9) Wide steel plate as conveyor belt base.
Structure of the Wet Wipe Machine
1. Steel structure, stainless steel plate and stainless steel components.

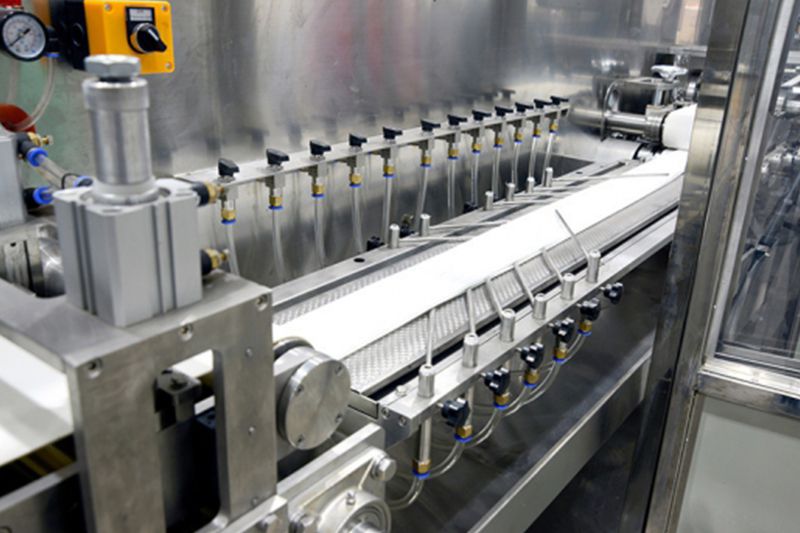

2. Spraying-type lotion supply, adjustable liquid amount.

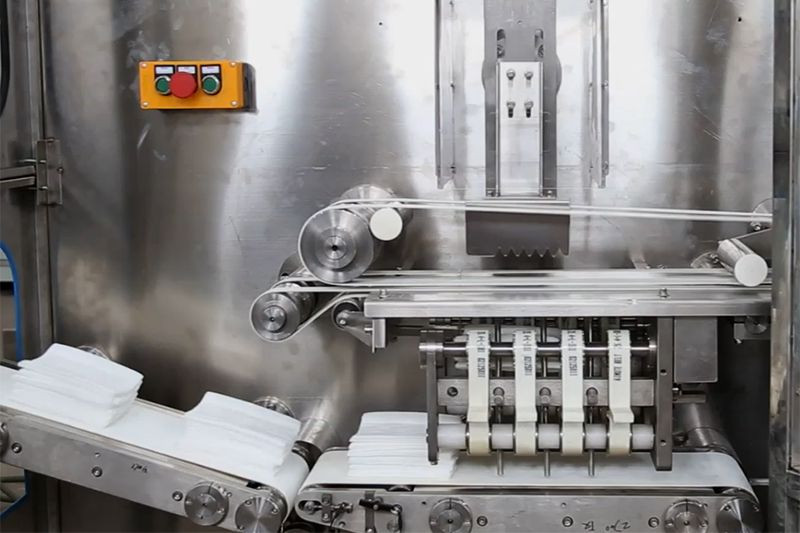

3. Neat stacking.

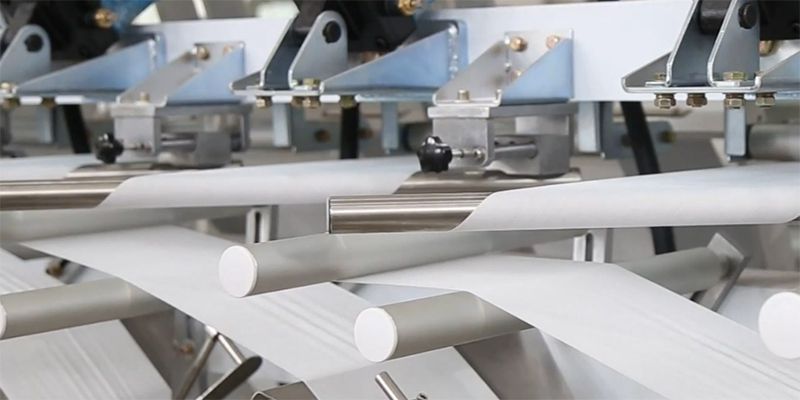

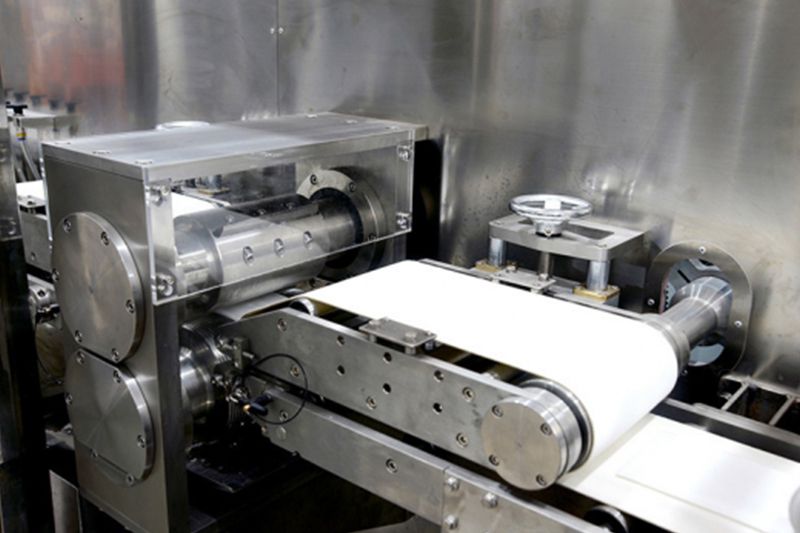

4. Spunlace cutting system, adjustable length.
5. Piece and stack counting control via touch screen.
6. Finished product delivery.
7. CE standard electrical parts.
8. Safety system: emergency braking system, safe blade, glass door protection.
9. HMI: color touch screen. Touch the menu for every operation, and all the dates can be easily adjusted, recorded and tracked.
