Machine
- Cutting Speed 400-500 cuts per minute (10-12 sheet per cut)
- Design Speed 560 cuts per minute
- Fold Types Z-fold (interfold or non-interfold adjustable)
Product
- Open Wipe Length 120-230mm
- Open Wipe Width 150-220mm
- Folded Wipe Length 120-230mm
- Folded Wipe Width 80-110mm

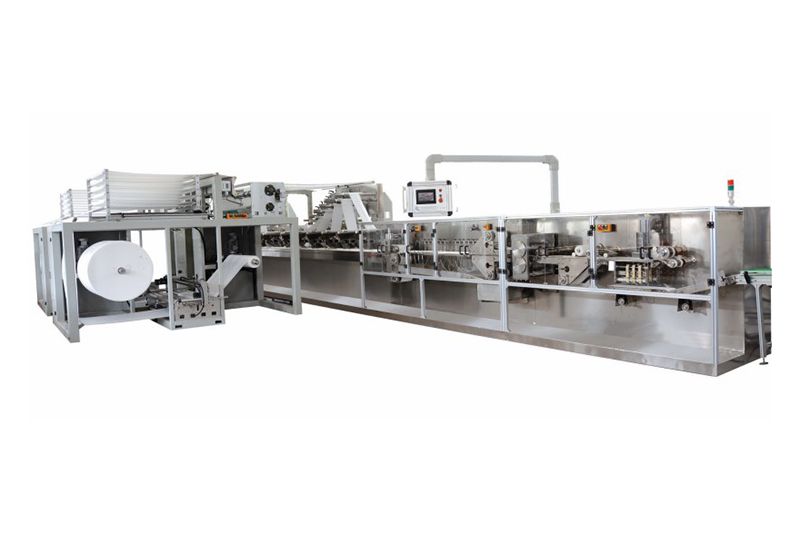

Suitable for producing large pouch wet wipes in packs of 30-120 pieces, this fully automatic wet wipe folding machine operates at a cutting speed of 400-500 cuts per minute. Featuring an automatic nonwoven fabric roll switching function, it ensures seamless on-line slitting, folding, and cutting of large fabric rolls, allowing uninterrupted wet wipes production and maximizing efficiency. By automating and streamlining the production process, this wet wipes machine significantly reduces labor costs, creating greater value for businesses.
Automatic Unwinding → In-Line Slitting → Web Guiding → Longitudinal Folding → Synchronous Conveying → Wetting and Cut-Off → Stacking and Counting → Wrapping Film Feeding → Packaging → Lid Application → Finished Product
| Cutting speed | 400-500 cuts/min (10-12 sheet per cut) | Fold type | Z-fold |
| Design speed | 560 cuts/min | Fold format | Interfold/non-interfold (adjustable) |
| Wipe material | Spunlace nonwoven fabric, wet-strength paper, thermal bond nonwoven fabric | Liquid adding tank | 600L×2 304 stainless steel tanks with agitator |
| Material weight | 35-60g/m² | Wetting range | 2.5-5 times, quantitative wetting (can be set by touch panel) |
| Number of parent rolls | Parent rolls on 2 shafts (automatic slitting of each parent roll into 5-6 narrower rolls, shaft diameter 76.2mm) | Cutting length | 120-230mm (double blade cutting) |
| Parent roll size | Width: 800-1320mm Diameter: < 900mm | Stack count | 30-120 sheet, 10-12 sheet/stack |
| Voltage | AC380V 50HZ three-phase five-wire | Stack height | Max. 100mm |
| Total power | 25kW | Air pressure | 0.6-0.8MPa |
| Open wipe length | Length: 120-230mm (customizable) | Machine dimensions (L×W×H) | 9830×3300×1800mm |
| Open wipe width | 150-220mm (customizable) | Liquid tank size | 900×1900×1900mm |
| Folded wipe length | 120-230mm (customizable) | Machine weight | Approx. 7t |
| Folded wipe width | 80-110mm (customizable) |
