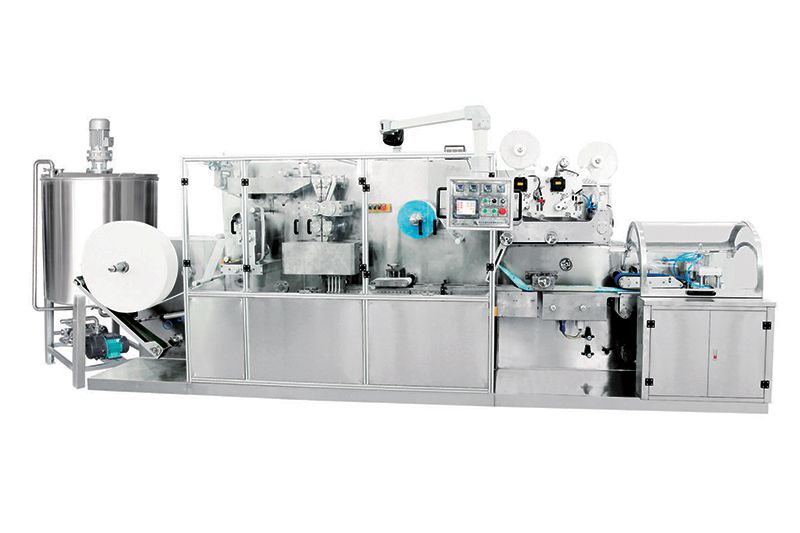

The DC-2020B wet wipe machine can achieve fully automatic production at a speed of 300 pieces/minute, with individual packages having 5-30 pieces inside. The package size is adjustable, and can be miniaturized. This wet wipe machine uses a servo drive and a unique high speed cross sealing technology. Among related tissue making machines, it features operational stability and a fast dynamic response. The cutting and feeding of materials and packaging films are controlled using a variable frequency drive. The user friendly features are represented by the touch screen operation and intelligent control. Production speed can be set directly, using the man to machine interface. As a professional wet tissue machine manufacturer, we recommend this high speed automatic wet wipe folding and packing machine.
Main Parameters| Power supply | three phase 380V, 50HZ |
| Power | 20KW |
| Suitable material | Spunlace nonwoven fabric |
| GSM | 45-60g/m2 |
| Raw material roll size (MM) | Width 160-240mm,diameter≤1200 |
| Packing film | OPP/PE,PET/PE |
| Unfolded size ( mm ) | (150-200 )×(140-200 )(L ×W) |
| Folded size(mm) | (75-100)×(60-80)(L×W) |
| Piece/pack | 5-30 pcs/pack |
| Designed speed | 50pack/min (10pcs/pack) |
| Production speed | 40pack/min(10pcs/pack) |
| Waste rate | ≤3% |
| Installation space (mm) | 5000 ×1300 ×2000(L ×W ×H) |
| Weight(KG) | 3000KG |
Features of DC-2020B Wet Wipe Machine
1. Stainless steel frame, Mitsubishi electrical components.
2. Electric differential gear, adjusting phase without stopping the machine.
3. Synchronous transport of spunlace nonwoven fabric.
4. Hole punching and labeling locations can be set via the touch screen.
5. Reciprocating sealing device.
6. Double labeling machines.
7. The wet wipe machine automatically opens a window on the packaging films.
8. Z,W,C folding styles.
9. Spraying spunlace nonwoven wetting device.
10. Roll folding at adjustable length.
Configuration of DC-2020B Wet Wipe Machine
1. Spunlace cutting device.
2. Spunlace lengthwise folding device.
3. Spunlace widthwise folding device.
4. Spunlace wetting device.
5. Wet tissue cutting device, adopting high-speed steel cutting blade.
6. Automatic counting and stacking device.
7. Packaging film hole punching device.
8. Packaging film forming device.
9. Packaging film lengthwise sealing device.
10. Packaging film widthwise sealing device.
11. Closed gear box + timing belt + universal coupling.
12. Stepwise labeling control.
13. Variable frequency engine control.
14. Independent servo control over stacking, pushing, and sealing to achieve synchronous operation.
15. Spray extrusion control for lotion supply system.
16. Coding device: ink coder with printing speed up to 300 beats / minute.
