Machine
- Cutting Speed 400-500 cuts per minute (20 sheet per cut)
- Design Speed 560 cuts per minute
- Fold Types Z-fold (interfold or non-interfold adjustable)
Product
- Open Wipe Length 120-230mm
- Open Wipe Width 150-200mm
- Folded Wipe Length 120-230mm
- Folded Wipe Width 80-110mm

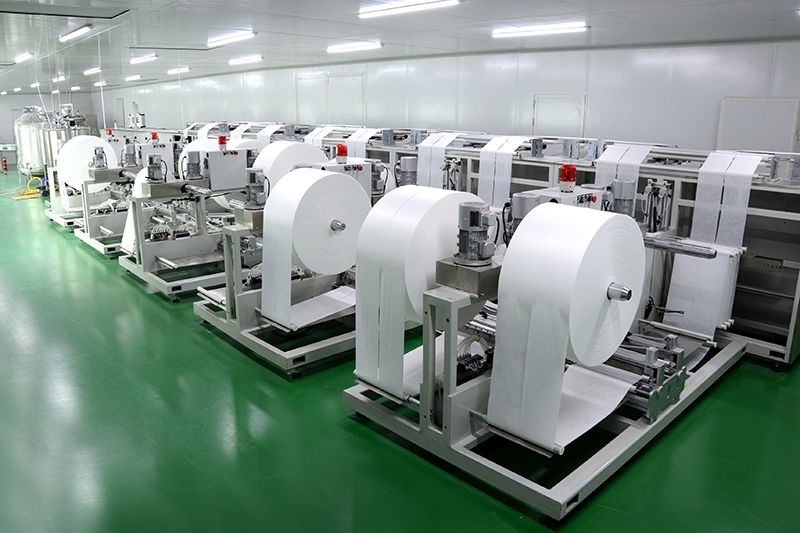

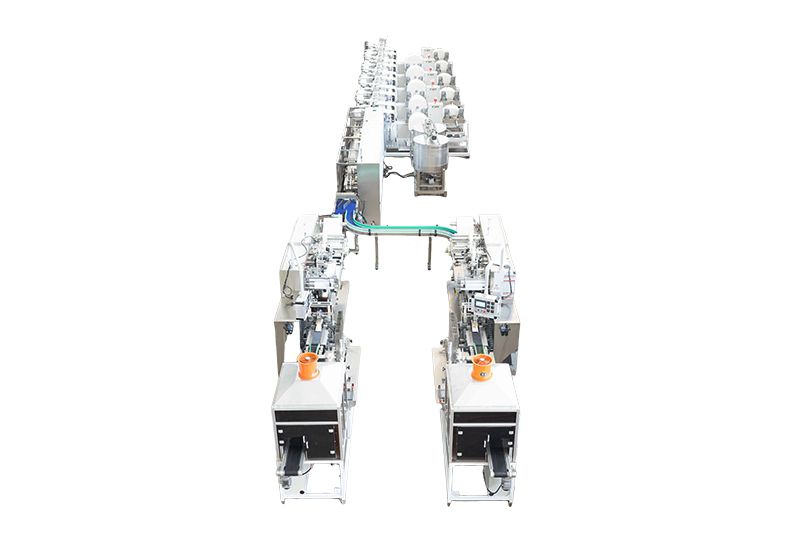

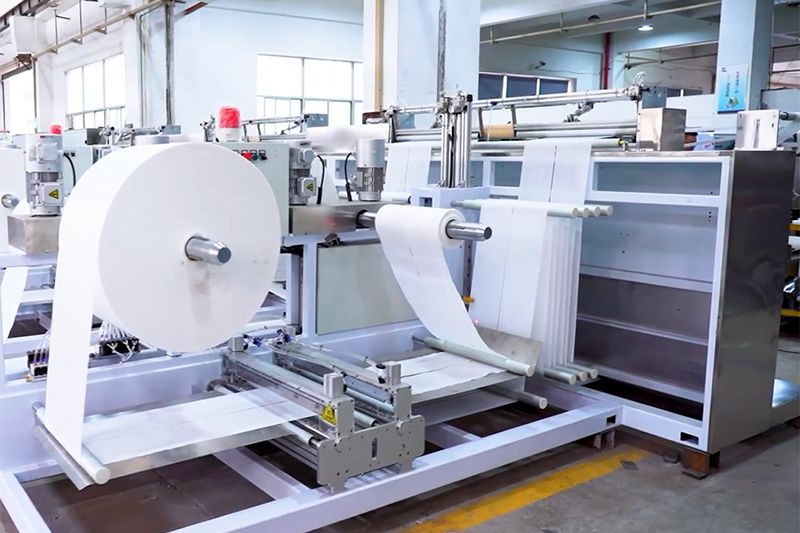

This fully automatic wet wipe folding machine is designed to handle 30-120 pieces per pack with the capability to switch materials without stopping the machine. Operating at speeds of up to 500 cuts per minute, it offers exceptional speed, efficiency, and stability, significantly boosting production output while reducing labor requirements.
Widely utilized in industries such as healthcare, hygiene, and baby care, this wet tissue machine delivers reliable performance and high productivity, making it an excellent choice for large-scale wet wipe manufacturing.
Automatic Unwinding → Web Guiding → Longitudinal Folding → Synchronous Conveying → Wetting and Cut-Off → Stacking and Counting → Wrapping Film Feeding → Packaging → Lid Application → Finished Product
| Cutting speed | 400-500 cuts/min (20 sheet per cut) | Fold type | Z-fold |
| Design speed | 560 cuts/min | Fold format | Interfold/non-interfold (adjustable) |
| Wipe material | Spunlace nonwoven fabric, wet-strength paper, thermal bond nonwoven fabric | Liquid adding tank | 600L×2 304 stainless steel tanks with agitator |
| Material weight | 35-80g/m² | Wetting range | 2.5-5 times, quantitative wetting (can be set by touch panel) |
| Number of parent rolls | Parent rolls on 10 shafts (2 rolls on each shaft, with 10 standby shafts) | Cutting length | 120-230mm |
| Parent roll size | Width: 150-200mm*2 (2 rolls on one shaft) Diameter: < 1000mm | Stack count | 20-120 sheet, 10-12 sheet/stack |
| Voltage | AC380V 50HZ three-phase five-wire | Stack height | Max. 110mm |
| Power | Total power: 35.5kW Operating power: 28kW | Air pressure | 0.6-0.8MPa |
| Open wipe length | Length: 120-230mm (customizable) | Machine dimensions (L×W×H) | 15000×4600×1800mm |
| Open wipe width | 150-200mm (customizable) | Liquid tank size | 900×1900×1900mm |
| Folded wipe length | 120-230mm (customizable) | Machine weight | Approx. 10t |
| Folded wipe width | 80-110mm (customizable) |
Get Tailored Turnkey Solutions for Wet Wipes Packaging
