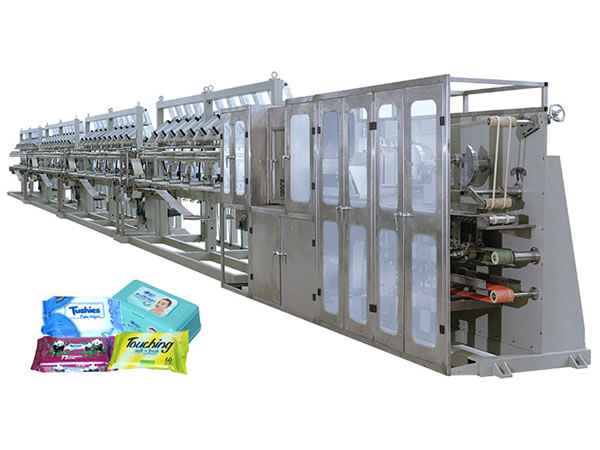

Parameters of DCW4800 Wet Wipe Machine
1. Design speed: 4000-18000 pics/min
2. Materials: spunlace, thermobond, airlaid
3. Material rolls dimension: 1000×240 (dia × width) mm
4. GSM of nonwoven fabric: 35-80 g/m2
5. Folding size: (80-120) ×（120-220) mm（width × length)
6. Electric power: 32kw
7. Control interface: SIEMENS - Win CC flexible advanced touching screen interface
8. Control system: SIEMENS - SIMOTION Servo Control System
9. Control way: Fully automatic and Pre-setting
10. Power drive: Fully Driven by Siemens servo motor
11. Wetting system: Pre-setting dosing automatically
12. Wetting Precision: ±5%
13. Cutting way: Rotary blade cutting
14. Weight: 10000Kg
15. Dimension：23500×4000×2200 (L×W×H)
16. Single rack: 6280×2000×2200 (L×W×H)
17. Water tank: 2 pcs with the machine
18. Water tank size: 2000×1100×1900mm(L×W×H)
Features of the DW4800 Wet Wipe Machine
1. Installation: The block building installation allows operators to increase or decrease the number of material racks and packaging machines according to site conditions, production requirements, and financial situations, in order to achieve the best applicability and economy.
2. Stacker:
The stacking system is driven by a servo motor.
3. Cycle stacking belt:
This part of the wet wipe machine is made from high quality stainless steel. The width of the guiding pole can be adjusted during operation. The stacking belt also uses servo motor control. The counting stacks number and the decline distance can also be adjusted during operation.
4. Transport after stacking:
This section is made of stainless steel and PTFE. The distance between the two belts can be adjusted during operation, and the display shows the data, while the servo motor tracks the stacking driver.
5. Cutting device:
The cutting device is made of stainless steel, 20CrMnTi and 45# steel. It is also equipped with a gas-liquid transform system.
6. Parent material reel shaft
It features a fast changeover, is lightweight and its positioning is precise.
7. Towel rack:
A rubber roller is tracked by the servo motor. The first level conveyor belt is driven by a high power servo motor, and the other levels are tracked using a high power motor and coder. The rack can be lifted with the cylinder.
8. Relay transfer:
This is driven by the servo motor, and its designed for fabric tension control to achieve a conveying stability.
