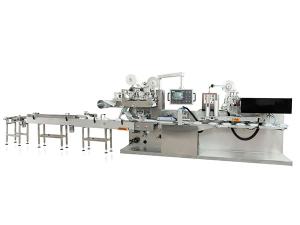

The DCL-20 automatic lid applicator is an upgraded version of the DCL-10. Add it to a KGT-340B automatic packaging machine, a DCW2700 automatic folding machine, and the DCL-20 automatic lid applicator will now form a fully automated wet tissue production line.
Automatic versus Semi-Automatic
The DCL-20 and the semi-automatic DCL-10 both can carry out labeling and gluing automatically. The different lies in the fat that the DCL-20 is capable of automatic positioning, sucking the lid up and attaching it to the package, whereas the semi-automatic machine can’t. Using the semi-automatic machine, operators have to manually place the lids. Using the automatic lid applicator saves manpower (3-4 people) and is more suited for large-scale wet tissue manufacturers. For more information, please browse the related pages.
Parameters of the Lid Applicator
1. Power: three-phase 380V, 50Hz
2. Power: about 5kW
3. Machine Size: 2020 × 1200 × 1980 (L × W × H)
4. Design speed: 60 packs / min
5. Production speed: 50 packs / min
6. Waste rate: ≤3%
Raw Material Specifications
1. Lid: width ≤80, length ≤120.
2. Label: width ≤60, diameter ≤300
Featuresof the Lid Applicator
1. Automatic switching between two lidding grooves.
2. Synchronous belt lid sending mechanism.
3. A labeling machine will automatically stop when there are no lids to label.
4. Roller-type gluing mechanism will adjust the amount of glue with a scraping sheet. It also comes with a gear pump gluing machine.
5. Patented automatic robotic arm for grabbing lids. The trajectory can be edited to grab lids and packaging bags of different sizes.
6. 3 servo motors control the lid feeding device and robotic arm respectively (2 servos).
7. Packaging bags feeding mechanism.
8. Color touch screen, motion control.
9. Major appliances of famous brand.
10. Each motor can be individually turned on and off. Operation is carried out on the touch screen.
11. Frame-based body.
Main Configurations of the Lid Applicator
1. 2 sets of lidding grooves.
2. 1 set of lid sending mechanism.
3. 1 labeling device.
4. 1 set of gluing mechanism and 1 gluing machine.
5. 1 set of conveying device.
6. 1 set of robotic arm.
7. 1 whole package of electrical control system.
