Dachang is a wet wipe machinery manufacturer based in China. We provide a variety of different wet wipe production equipment to produce single-sheet packs and multi-sheets packs. We also manufacture wet tissue folding machines, packaging machines and lid applicators. The DC-15C rolled wipe machine can be used to make wet tissue rolls, and the size can be adjusted according to the specific needs of customers, making it an ideal wet wipe machnie with canister packaging.

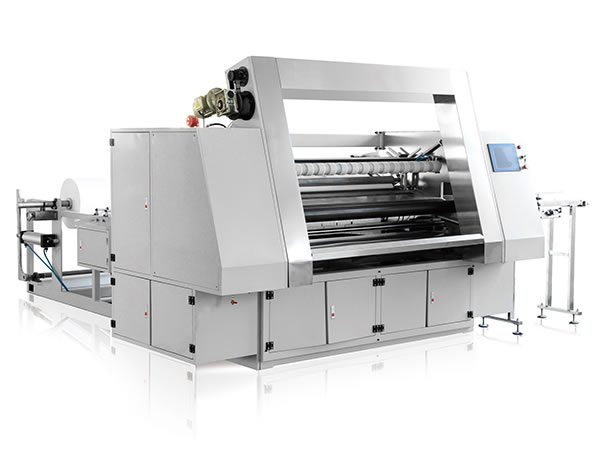

Details of DC-15C Rolled Wipe Machine
1. Filling by pneumatic valve: liquid reflux is controlled, and the filling volume is precise.
2. The heat sealing/cutting device and package forming device are pneumatically controlled, and the product height is adjustable.
3. The rolled wipe machine is equipped with a moistening system, automatic film cutting device, automatic sealing device, and automatic waste collecting device.
4. Good stability, high production efficiency: the finished packs are firmly adhered and water impermeable.
5. Imported PLC control: manual and automatic control.
6. The table, housing, liquid bucket and mold plate of the rolled wipe machine are made of high quality stainless steel and have excellent corrosion resistance. The upper die surface has a Teflon non-stick coating.
7. The electrical control system features reasonable, neat wiring, and is easy to use.
| a) Inverter | Mitsubishi(Japan) |
| b) Encoder | Koyo(Japan) |
| c) Human-machine interface | Mitsubishi(Japan) |
| d) PLC | Mitsubishi(Japan) |
| e) Intermediate relay | Fuji (Japan) |
| f) Air switch | Fuji (Japan) |
| g) Connective photoelectric switch | Autonics (South Korea) |
Parameters of DC-15C Rolled Wipe Machine
1. Power supply: 380V 50HZ
2. Power: 9KW
3. Suitable raw material: air laid paper, nonwoven, spunlace nonwoven
4. GSM of material: 30-60g/m2
5. Maximum size of raw material (Φx W): 1200 x 1500(mm)
6. Maximum size of the sheet: adjustable
7. Maximum size of wet tissue roll (mm): （Φx W)120 x width (adjustable)
8. Rewinding speed: 90m/min
9. Weight of machine: 2000kg
10. Machine size (mm): 3405 x 2108 x2032 (LxWxH)
11. Size of conveyor shelf (mm): 2000x200x1070 (LxWxH)
